6JS Series of in-mold Tapping machine
6JS Series of in-mold Tapping machine

·  No limited to any punch strokes.

·  Suitable for the products which use single arm ,2D or 3D robot material feeder. Also for the tooling which has specific installation or space requirements.

·  Tapping sizes of metric M2-M12 or the corresponding UNC/UNF/BSW threads.

·  Rapid collet replacement for screwtap by pressing clips of collet directly.

·  The minimum pitch is 13mm.

·  Suspended positioning installation with overall machine.

·  Covenient and efficient for machine mantainance.

·  Can be customized as special request.

Down

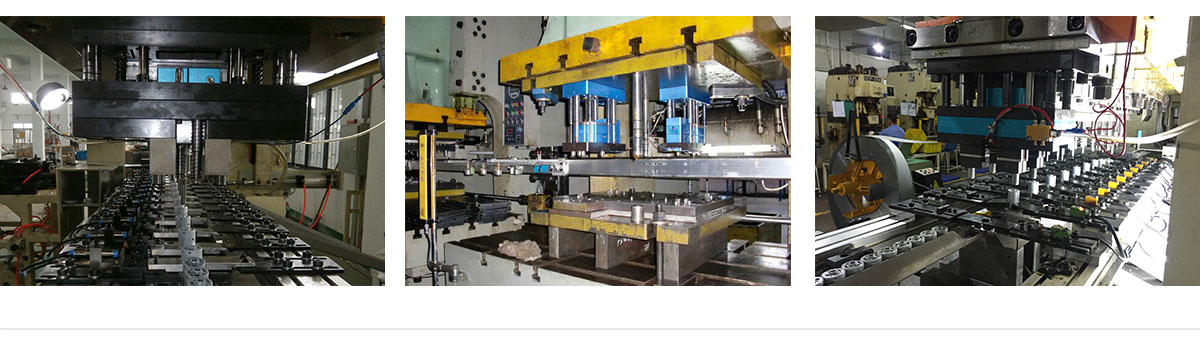

Results Show
Parameter Specification

Install the renderings

6js.jpgConfigurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.




Technical parameter

Model

6JS1

6JS2

6JS36JS46JS56JS66JS76JS86JS96JS10
Punch Strokevariable
Feeding modeSingle arm ,2D or 3D robot material feeder
Center distanceAccording to drawing of installation scheme
Tapping SizeMetric M1 -M12 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole12345678910
Installation typeSuspended positioning installation with overall machine
RemarksCustomized



Overall dimension





How to order

DZX-6JS1-T

DZX-6JS2-T-W

T:means punch stroke

W:means ceter distance
